• Dry bath,Lab Armor Bead Baths
  • M720
  • Capacity: 20L, temperature control range from room temperature +5 to 80℃, no need for any accessories such as test tube racks, bottle clips, or floats to secure the samples.
  • M720
  • Dry bath,Lab Armor Bead Baths
  • Capacity: 20L, temperature control range from room temperature +5 to 80℃, no need for any accessories such as test tube racks, bottle clips, or floats to secure the samples.
M720 Dry bath Lab Armor Beads Bath is a microcomputer-controlled constant temperature metal bead bath device with high temperature control accuracy and good parallelism in sample preparation. It replaces traditional water bath equipment and traditional modular metal baths and can be widely used for culturing, cell recovery, preservation, and reactions of various samples.
Product Introduction
DH-5A CNC super thermostatic bath adopts a microcomputer intelligent control system. It is equipped with a circulating pump that can circulate the thermostatic liquid outside the bath to establish a second constant temperature field. It is widely used in research departments, universities, enterprise quality inspection, and production departments in the fields of petroleum, chemical industry, electronic instruments, physics, chemistry, bioengineering, medical health, life sciences, light industry food, physical property testing, and chemical analysis, providing users with a cold and hot controlled, temperature-uniform and constant liquid environment for work. The fluctuation range can be selected as ±0.05℃ or ±0.1℃. The LED double window red-green light dual-color numerical display can also be replaced by a large-screen LCD display. The touch soft keys allow for quick temperature setting and easy operation. The microcomputer corrects the deviation of the temperature measurement value, and the temperature numerical display accuracy can be selected as 0.1℃ or 0.01℃. It also has an over-temperature alarm system.


Technical Parameters
Model: DH-5A
Temperature range: Ambient +5℃ to 95℃
Temperature stability: ±0.2℃
Display resolution: 0.1/0.01℃
Working bath volume: 5L (240×140×150㎜)
Bath depth: 150 ㎜
Circulating pump flow rate: Internal circulation
Working bath opening: 130×130 ㎜
Drainage outlet: None
Net weight: 9 Kg
Packing size: 388*345*520 ㎜


Single Page - Color Page
Name: Author: Action:
CNC super thermostatic bath DH-5A dry_bath Download


Related products
Name: Model:
Circulating constant temperature bath DH-20/DH-20A
Thermostatic oil Bath DH-15
CNC super thermostatic bath DH-5A
Product List
M720 Unit
Host Machine Unit

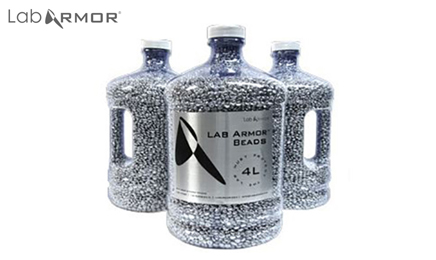

Protective armor beads liters
Power cord piece
User manual copy
Description
1
15
1
1
